| NOMINAL IMPEDANCE | 4Ω |
| SENSITIVITY | 90dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 40Hz - 28kHz (±6dB) open backed |
| CROSSOVER FREQUENCIES | 300Hz, 2.4kHz |
| DRIVE UNITS | LF: 4 x 160mm (6.5 in.) MF: 160mm (6.5 in.) HF: 25mm (1 in.) Uni-Q |
| RECOMMENDED AMPLIFIER POWER | 40 - 250W |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 1070 x 230 x 105.7 mm (42.13 x 9.06 x 4.16 in.) H x W x D with Grille : 1073 x 242 x 112.4 mm (42.24 x 9.53 x 4.43 in.) |
| CUT-OUT DIMENSIONS | H x W : 1052 x 209mm (41.42 x 8.23 in.) |
| MOUNTING DEPTH FROM SURFACE | 99mm (3.9 in.) |
| NET WEIGHT | 19 kg (41.89 lbs) |
| UNIT MEASUREMENT | Piece |
For the ultimate in custom installed Extreme Home Theatre, the formidable new Architectural Speakers Series has the jaw-dropping acoustic capabilities of the classic Architectural floorstander it's named after, with all the drama and emotional intensity of full theatre sound quality.
The Architectural Speakers Series consists of an in-ceiling speaker that can be combined with one of two in-wall models, and a sensational new powered subwoofer. As you might expect, its towering performance sets a new standard for custom installed speakers.

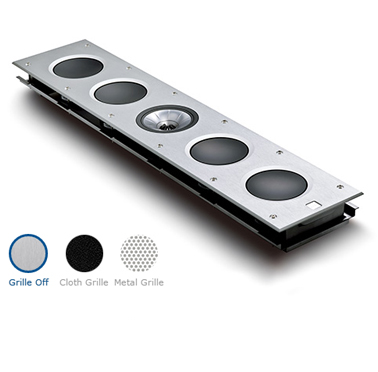

The THX is crafted with a massive aluminium baffle to eliminate vibration and is the perfect platform for the 160mm aluminium cone Uni-Q with tangerine waveguide, and four 160mm woofers. Capable of bi-wire and bi-amplifier connections the THX delivers on the performance promise of all Architectural Series speakers.
