In-Wall Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 4 Ω |
| SENSITIVITY | 90dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 35Hz - 120Hz (±6dB) open backed |
| DRIVE UNITS | LF: 4 x 100mm (4 in.) |
| AMPLIFIER REQUIREMENTS | KASA500 |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 490 x 128 x 81 mm (19.29 x 5.04 x 3.19 in.) |
| CUT-OUT DIMENSIONS | H x W : 476 x 114mm (18.74 x 4.49 in.) |
| MOUNTING DEPTH FROM SURFACE | 76mm (3.0 in.) |
| NET WEIGHT | 3 kg (6.61 lbs) |
| UNIT MEASUREMENT | Piece |

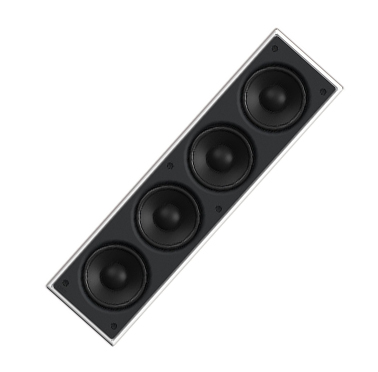

The in-wall subwoofer features four compact 100mm (4in.) LF drivers. Housed in a rigid aluminum frame with a total mounting depth of 76mm (3in.), the mounted in any standard wall cavity.
Easy to install and stunning to behold (both visually and acoustically), KEF's all-new range of rectangular in-wall speakers are designed and engineered for serious music and home theater systems.
