In-Wall Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 8 Ohm |
| SENSITIVITY | 87dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 110Hz - 24Hz (+/-6dB) open-backed |
| CROSSOVER FREQUENCIES | 1.7Hz |
| DRIVE UNITS | DRIVE UNITS |
| RECOMMENDED AMPLIFIER POWER | 10-100W |
| PRODUCT EXTERNAL DIMENSIONS | Diameter : 222.8x222.8 mm (8.77 x 8.77 in.) Depth : 41mm (1.61in.) |
| Diameter : 222.8x222.8 mm (8.77 x 8.77 in.) Depth : 41mm (1.61in.) | HxW: 194 x 194 mm (7.64 x 7.64 in.) |
| MOUNTING DEPTH FROM SURFACE | <36mm (1 7/16in.) |
| OPTIONAL ROUGH IN FRAME | RIF160S |
| OPTIONAL REAR ENCLOSURE | RNC160S |
| NET WEIGHT | 1.05kg (2.31lbs) |
| UNIT MEASUREMENT | Piece |

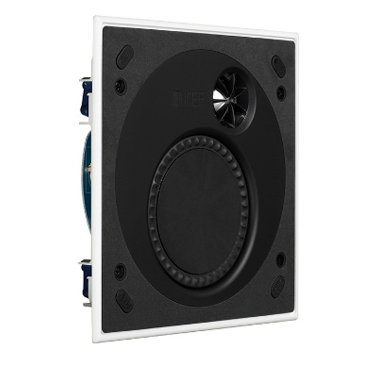

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying uncompromised sound quality where installation space is at a premium. Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments and super-premium motor yachts.
