| NOMINAL IMPEDANCE | 6 Ohm - Passive Mode (Crossover "ON") N/A - Active Mode (KASA500) |
| SENSITIVITY | 85dB - Passive Mode (Crossover "ON") N/A - Active Mode (KASA500) |
| FREQUENCY RESPONSE | 40Hz-100Hz - Passive Mode (Crossover "ON") 18Hz-140Hz - Active Mode (KASA500) |
| CROSSOVER FREQUENCIES | 100Hz - Passive Mode (Crossover "ON") N/A - Active Mode (KASA500) |
| DRIVE UNITS | LF: 200mm (8 in.) |
| RECOMMENDED AMPLIFIER POWER | 10-150W - Passive Mode (Crossover "ON") KASA500 - Active Mode (KASA500) |
| PRODUCT EXTERNAL DIMENSIONS | Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.) |
| CUT-OUT DIMENSIONS | H x W: 238 x 238 mm (9.37 x 9.37 in.) |
| MOUNTING DEPTH FROM SURFACE | 101.6mm (4 in.) |
| OPTIONAL ROUGH IN FRAME | RIF200S |
| NET WEIGHT | 3.3kg (7.28 lbs) |
| UNIT MEASUREMENT | Piece |

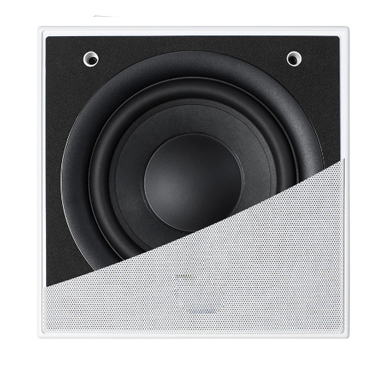

Certified to THX ULTRA2 and THX SELECT2 standards, the formidable in-wall subwoofer delivers deep bass and theatre thumping output capabilities, matched to the uncanny ability to deliver all the drama and emotional intensity of full theatre sound quality. With a powerful high-output 200mm (8in.) sub-bass driver, the can be used in passive mode to supplement the LF output of series in-wall or in-ceiling speakers. In Active mode, when 2 pair of the subwoofer are powered by the powerful System Amplifier the performance meets THX Select2 specification. When 4 pair of the are powered by 2 System Amplifiers the performance meets THX Ultra2 specification.
