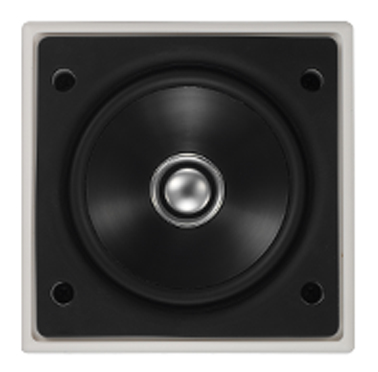

In-Wall Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 4 Ω |
| SENSITIVITY | 88dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 80 - 27kHz (±6dB) 2pi/open-backed |
| CROSSOVER FREQUENCIES | 3kHz |
| DRIVE UNITS | LF: 100mm (4in.) HF: 19mm (0.75in.) |
| AMPLIFIER POWER | 10 - 50 W |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 127 x 127 x 76 mm (5.0 x 5.0 x 2.99 in.) |
| CUT-OUT DIMENSIONS | H x W : 112 x 112 mm (4.41 x 4.41 in.) |
| MOUNTING DEPTH FROM SURFACE | Without back can : 72mm (2.83in.) |
| OPTIONAL ROUGH IN FRAME | RIF100S |
| OPTIONAL REAR ENCLOSURE | RNC100S |
| NET WEIGHT | 0.67kg (1.48lbs.) |
| UNIT MEASUREMENT | Piece |
The popular Soundlight Series is yet another major innovation. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance, thanks to patented Uni-Q's exceptionally wide dispersion.
