THX Extreme Home Theatre

NOMINAL IMPEDANCE
SENSITIVITY 90dB (2.83V/ 1m)
FREQUENCY RESPONSE 45Hz - 28kHz (±6dB) open backed
CROSSOVER FREQUENCIES 340Hz, 2.5kHz
DRIVE UNITS LF: 2 x 160mm (6.5 in.) MF: 160mm (6.5 in.) HF: 25mm (1 in.) Uni-Q
RECOMMENDED AMPLIFIER POWER 30 - 180W
PRODUCT EXTERNAL DIMENSIONS H x W x D : 680 x 230 x 105.7 mm (26.77 x 9.06 x 4.16 in.)
CUT-OUT DIMENSIONS H x W : 660 x 209mm (25.98 x 8.23 in.)
MOUNTING DEPTH FROM SURFACE 99mm (3.9 in.)
NET WEIGHT 11.7 kg (25.79 lbs)
UNIT MEASUREMENT Piece

For the ultimate in custom installed Extreme Home Theatre, the formidable new Series has the jaw-dropping acoustic capabilities of the classic floorstander it's named after, with all the drama and emotional intensity of full theatre sound quality.

The Series consists of an in-ceiling speaker that can be combined with one of two in-wall models, and a sensational new powered subwoofer. As you might expect, its towering performance sets a new standard for custom installed speakers.

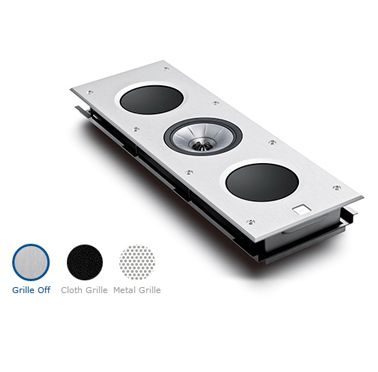

The THX is crafted with a massive aluminium baffle to eliminate vibration and is the perfect platform for the 160mm aluminium cone Uni-Q with tangerine waveguide, and two 160mm woofers. Capable of bi-wire and bi-amplifier connections the THX delivers on the performance promise of all Series speakers.
