THX Extreme Home Theatre
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 4Ω |
| SENSITIVITY | 92dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 20Hz - 140Hz (±6dB) open backed |
| DRIVE UNITS | LF: 3 x 160mm (6.5 in.) |
| AMPLIFIER REQUIREMENTS | KASA500 |
| PRODUCT EXTERNAL DIMENSIONS | H x W x D : 680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.) H x W x D with Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.) |
| CUT-OUT DIMENSIONS | H x W : 660 x 209mm (25.98 x 8.23 in.) |
| MOUNTING DEPTH FROM SURFACE | 88.5mm (3.84 in.) |
| NET WEIGHT | 10.9 kg (24.1 lbs) |
| UNIT MEASUREMENT | Piece |

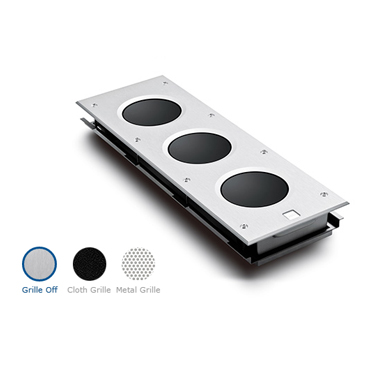

For the ultimate in Extreme Home Theatre, certified to THX ULTRA2 and THX SELECT2 standards, the formidable new Series THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.
With three high-output 160mm sub-bass drivers mounted to a massive aluminium baffle the THX must be matched with powerful KASA500 system amplifier. Each KASA500 can power up to two of the THX subwoofers for even the most demanding theatre installations.
