In-Ceiling Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 8Ω |
| SENSITIVITY | 87dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 110Hz - 24kHz (±6dB) open backed |
| CROSSOVER FREQUENCIES | 1.7kHz |
| DRIVE UNITS | LF: 115mm (4.5 in.) dual layer MF HF: 25mm (1 in.) aluminium HF |
| AMPLIFIER POWER | 10-100W |
| PRODUCT EXTERNAL DIMENSIONS | Diameter: 234.6mm (9.24 in.) Depth: 40mm (1.57 in.) |
| CUT-OUT DIMENSIONS | 196mm (7.71 in.) |
| MOUNTING DEPTH FROM SURFACE | 36mm (1.42 in.) |
| MINIMUM WALL THICKNESS | 10mm (0.39 in.) |
| MAXIMUM WALL THICKNESS | 25.5mm (1 in.) |
| OPTIONAL ROUGH IN FRAME | RIF160R |
| OPTIONAL REAR ENCLOSURE | RNC160R |
| NET WEIGHT | 1 kg |
| UNIT MEASUREMENT | Piece |

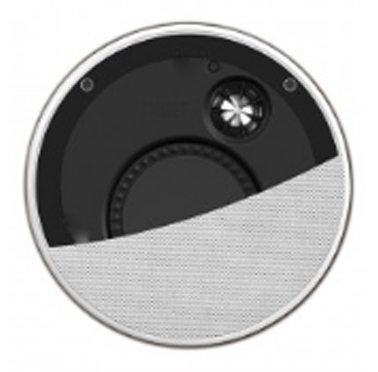

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying uncompromised sound quality where installation space is at a premium. Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceiling or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments and super-premium motor yachts.
