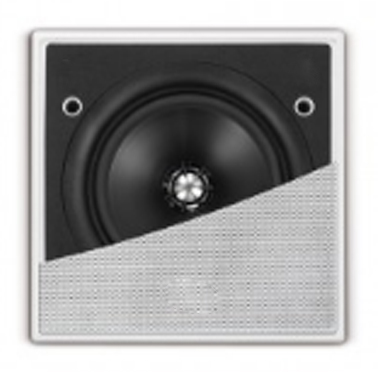

In-Ceiling Speakers

NOMINAL IMPEDANCE
SENSITIVITY 87dB (2.83V/ 1m)
FREQUENCY RESPONSE 45Hz - 34kHz (±6dB) open backed
CROSSOVER FREQUENCIES 3.8kHz
DRIVE UNITS LF: 130mm (5.25in.) HF: 19mm (0.75in.) Uni-Q
AMPLIFIER POWER 10 - 100W
PRODUCT EXTERNAL DIMENSIONS H x W x D : 184 x 184 x 84 mm (7.24 x 7.24 x 3.26 in.)
CUT-OUT DIMENSIONS H x W : 158 x 158 mm (6.22 x 6.22 in.)
MOUNTING DEPTH FROM SURFACE 77.9mm (3.07in.)
OPTIONAL ROUGH IN FRAME RIF130S
OPTIONAL REAR ENCLOSURE RNC130S
NET WEIGHT 1.4kg (3.1lbs.)
UNIT MEASUREMENT Piece

Featuring sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.
