In-Ceiling Speakers
- Technical Info
- Description
- Download PDF
| NOMINAL IMPEDANCE | 4Ω |
| SENSITIVITY | 85dB (2.83V/ 1m) |
| FREQUENCY RESPONSE | 100 - 27kHz (±6dB) 2pi/open-backed 130 - 27kHz (±6dB) with back can/rear enclosure |
| CROSSOVER FREQUENCIES | 3kHz |
| DRIVE UNITS | LF: 80mm HF: 15mm |
| RECOMMENDED AMPLIFIER POWER | 10 - 50W |
| FEATURES | Uni-Q Array, Removeable Plastic Back Can |
| PRODUCT EXTERNAL DIMENSIONS | Diameter / Depth : 103mm (4.06in.) / 140mm (5.51in.) |
| CUT-OUT DIMENSIONS | Diameter : 97mm (3.82in.) |
| MOUNTING DEPTH FROM SURFACE | Product only / With back can : 80mm (3.15in.) / 139mm (5.47in.) |
| OPTIONAL ROUGH IN FRAME | RIF80R |
| OPTIONAL REAR ENCLOSURE | RNC80R |
| UNIT MEASUREMENT | Piece |

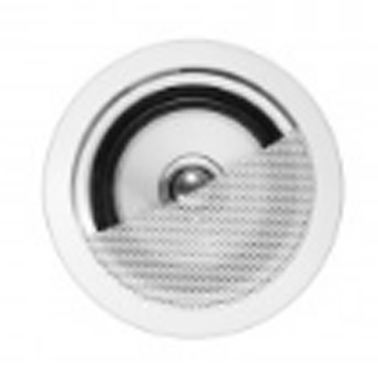

Purpose built for flush mounting into walls and ceilings these are the latest addition to the Uni-Q Custom Installation series. Providing a compact solution to the problem of Hi-Fi quality sound from an in-wall/ceiling speaker, the 80QR consists of a polypropylene cone LF driver with the HF unit mounted at the acoustic centre of the LF unit. The bezel and grill can be painted to match the interior décor.
