Integra alarm system keypad

Supply voltage 12 V DC
Enclosure dimensions 145 x 143 x 25 mm
Operating temperature range -10…+55 °C
Standby mode current consumption 60 mA
Max. current consumption 110 mA
Weight 346 g
Maximum humidity 93±3%
Environmental class according to EN50130-5 II

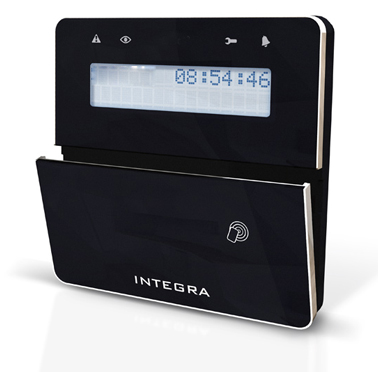

The INT-KLFR keypad has been designed for users who prefer a traditional interface to operate the alarm system, but also expect attractive appearance solutions. Additionally, the built-in proximity card reader allows you to operate the system without the necessity to remember passwords.

  •  Backlit keys and display
  •  LED indicators of system state
  •  PANIC, FIRE and MEDICAL (AUX) alarms triggered with keys
  •  Acoustic signaling of selected system events
  •  2 programmable zones (with 3EOL configuration support)
  •  RS-232 connector for interfacing with the GUARDX program
  •  Built-in proximity card reader for system operation
  •  Available in light (INT-KLFR-SSW), dark (INT-KLFR-BSB) and white (INT-KLFR-WSW)
