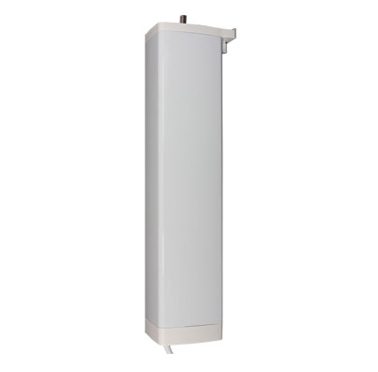

Curtain Motor
| Technology parameter |
| Model |
Voltage |
Frequency |
Power |
Torque |
Speed |
Line speed |
Insulation class |
Protection class |
| KE70A |
230V/120V |
50Hz/60Hz |
100W |
2.0Nm |
112/113rpm |
0.14m/S |
I.cl.E |
IP41 |
- Torque can be amounted to 2.0Nm, the horizontal tension can amount to 20KG, load capacity can amount to 80KG.
- E-travel automatic positioning,Debugging simple.
- Various control method: remote control, switch control, Intelligent low- voltage control.
- AVR industrial use in processor performance, making it more stable motor, control
- panel operating temperature range -40 - +85 ?.
- Min radius of the bend rail = 0.5m.
- Applicable to all occasions.
