Emega40 automation is 24 VDC, with display features built-in garage door surface not more than 9m². Also available in "motor only" in cases where it is essential to use two engines, such as insulated doors large, even up to 14m² of surface.

Ideal for moving quickly and silent all types of doors with counterweights, but also to springs, whether they are simply made of sheet steel, wood or insulated.

For all types of garage doors

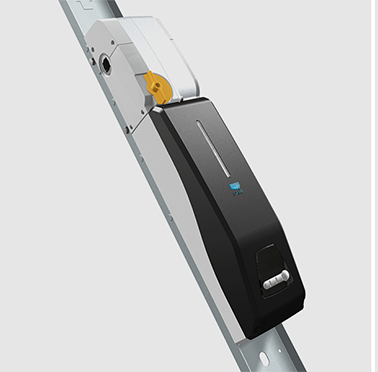

Emega40 is a 24 V DC operator, with built-in function display, for garage doors not exceeding 9m². Also available in "GEARMOTOR ONLY" version in cases where it is essential to use two motors, such as large insulated doors, even up to 14m².

Ideal for moving quickly and quietly all types of counterweighted spring overhead doors, whether they are simply made of sheet steel, wood or insulated material.

Advantages

 intensive use. Designed to facilitate the passage even where intensive door use is demanded

 obstacle detection. The encoder technology constantly analyses regular door operation, either stopping or reversing the movement, when coming into contact with any obstacles.

 reliability built to last. Structure in die-cast aluminium can withstand even the stress caused by the intensive use, such as in apartment blocks, over time

 innovative "all in one" design. The shell of Emega40 integrates electronics and management board, as well as any batteries for the opening the door in emergency situations

 home automation connection. Managed through the hei home automation system; Control of the automation and its functions is fully manageable through the he¡ touch screen.

 maximum functionality. Easy installation, facilitated by the small dimensions of the product

 unlimited compatibility. Fully compatible with the same mounting base of the Emega system to guarantee interchangeability between the two operators

 release lever. Located on the casing, allows connection to the standard handle for manual opening of the door from the outside

 emergency batteries. Available from our line of accessories, the emergency batteries that allow the door to be operated even during blackouts; can be totally encased inside the operator casing

Operator total control

Control and programming keypad built into the external part of the automation and readily available.

 initial set up

 opening and closing command

 function display

 speed control

 slowdown control

 LED signalling for function diagnostics
