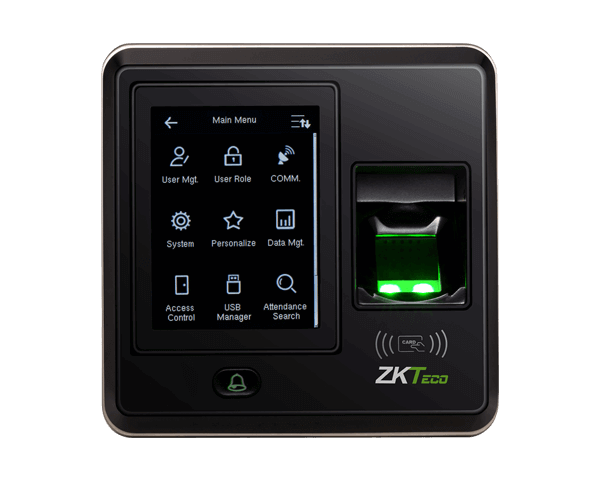

SF300
SF300
- Anti passback function
- Alarm signal
- Master & Slave solution
- Connect with a smoke detector
- Connect with an emergency switch
Specification
 |
|
| Quick Details LCD | 2.8 inch resistive touch screen |
| Fingerprint Sensor | ZK Optical Sensor (500DPI) |
| Algorithm Version | ZKFinger V10.0 |
| Communication | TCP/IP, USB Host |
| Fingerprint Capacity | 1,500 |
| Record Capacity | 80,000 |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Door Bell |
| Wiegand Signal | Wiegand input & output |
| Aux. Input | 1ea for linkage function |
| Power Supply | DC 12V / 3A |
| Operating Temperature | 0 ~ 45°C (32° ~ 113°F) |
| Operating Humidity | 20 ~ 80% |
| Dimension | 105 x 105 x 34mm (L*W*H) |
