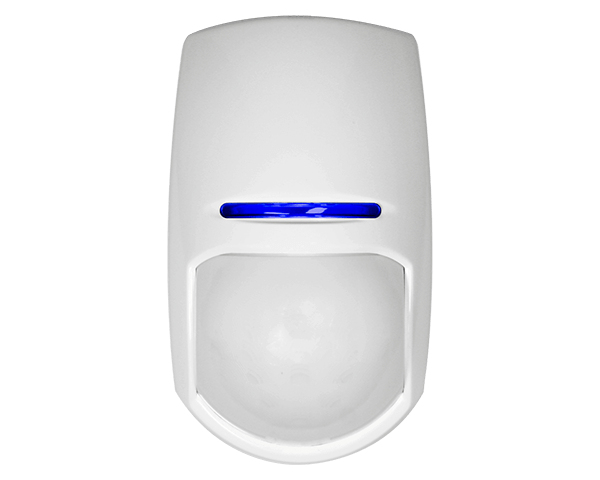

KX15DD
Smart KX15DD
- Digital temperature compensation
- Blue Wave Technology
- Auto sensitivity feature
- Tamper-proof brackets
- 15m volumetric detection coverage
Specification
 |
|
| Maximum range | 15m |
| Volumetric coverage | Yes |
| Detection speed | 0.3- 3.0m/s |
| Coverage angle | 85 degree |
| Detection zones | 60 |
| Detection planes | 7 |
| White light filter | 6500 Lux |
| Protection | Ultraviolet light filter |
| Lens | 3 dimensional |
| Optics | Sealed optics |
| Wall mounted | Bracket included |
| Ceiling mounted | Bracket included |
| Optimum coverage height | 1.8 - 2.4m |
| Certified mounting height | 2.4m |
| Storage temperature | -40C to 80C |
| Nominal operating temperature | -30C to 70C |
| Physical dimensions (H x W x D) | 117 x 69 x 50mm |
| Weight | 125g without bracket |
