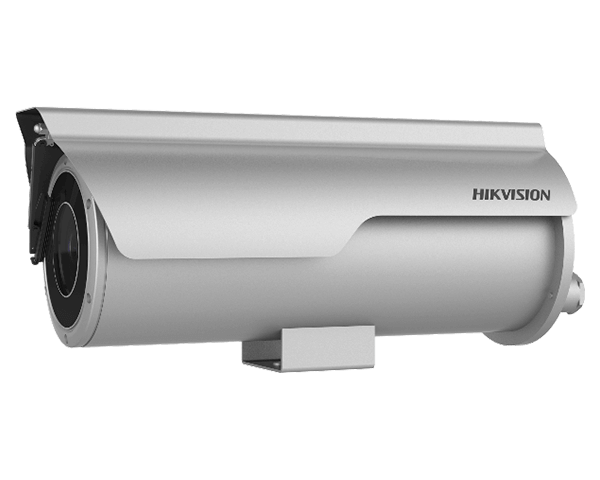

DS-2XC6625G0
EXIR Motorized Varifocal Bullet Anti-Corrosion Network Camera
- IP67 water resistant, preventing water ingress for outdoor use
- 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
- A built-in wiper removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments
- H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
Specification
 |
|
| Camera Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.0005 Lux @(F1.2, AGC ON), B/W: 0.0001 Lux @(F1.2，AGC ON), 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Lens Focus | Auto, semi-auto, manual |
| Lens Type | Motorized focal length, 2.8 to 12 mm, 8 to 32 mm |
| Focal Length & FOV | 2.8 to 12 mm, F1.4: horizontal field of view, 94.2° to 38.1°, 8 to 32 mm, F1.7: horizontal field of view, 42.2° to 15.1° |
| Video Main Stream | H.264/H.265:, 50 Hz：25fps (1920 × 1080, 1280 × 720), 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | H.264/H.265/MJPEG:, 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | H.264/H.265:, 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240), 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps~8Mbps |
| H.264 Type | BaseLine Profile / Main Profile / High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Image Wide Dynamic Range (WDR) | 120 dB |
| Day / Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| General Power | AC 24V: 24V±20%, 24V～, 1.7 A, 50/60 Hz, max. 40 W, PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, max: 24W |
| Dimension | 179.9 mm × 203.2 mm × 472 mm (7.08" × 8" × 18.58"), 10.95 kg (24.14 lb.) |
| Startup and Operating | -40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Heater | Yes |
| Wiper | Yes |
