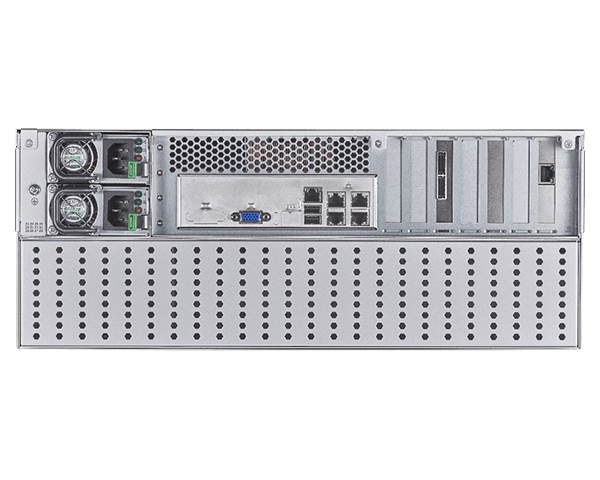

DS-A72024R-CVS
24-slot High-performance Cluster Storage
- Storage with virtualization / distribution / scale-out / load balance
- High performance application, cost-efficient system
- Efficient maintenance service
- Green, energy-efficient, compatible & open
- High reliability and scalability with redundant design for key parts, including modular drawer design (24 HDD slot, two 6-core processor, 16 GB cache extendable to 64 GB)
Specification
![]() |
|
| External interface USB | 4 |
| VGA | 1 |
| Data | 4, 1000M Ethernet interface, extendable to 4 × GE or 2 × 10GE |
| Management | 1, 100M Ethernet interface |
| COM | 1 |
| Storage Interface | SATA (SSD optional) |
| Hot-plugging | Supported |
| HDD slot | 24 |
| RAID | RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare |
| Capacity | 1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8TB, 10TB, 12TB |
| Controller Processor | 2 × Xeon hexa-core processor |
| Cache | 16 GB (extendable to 64 GB) |
| SSD | 64 GB |
| Performance Video: recording + playback (2Mbps) | 300-ch + 64-ch |
| General Power supply | Redundant power supply |
| Dimensions (W × D × H) | 430 × 730 × 180 mm (16.9 × 28.7 × 7.1 inch) |
| Chassis | 19-inch 4U standard chassis |
| Weight (without HDD) | ≤ 40 kg (88.2 lb) |
| Power Consumption(with HDD) | Operating: ≤ 410 W Rated: ≤ 875 W |
| Temperature | Operating: 5 °C to 35 °C (41 °F to 95 °F);Storing: -20 °C to +70 °C (-4 °F to +158 °F) |
| Humidity | Operating: 20% to 80% RH (non-condensing / frozen);Storing: 5% to 90% RH (non-condensing / frozen) |
