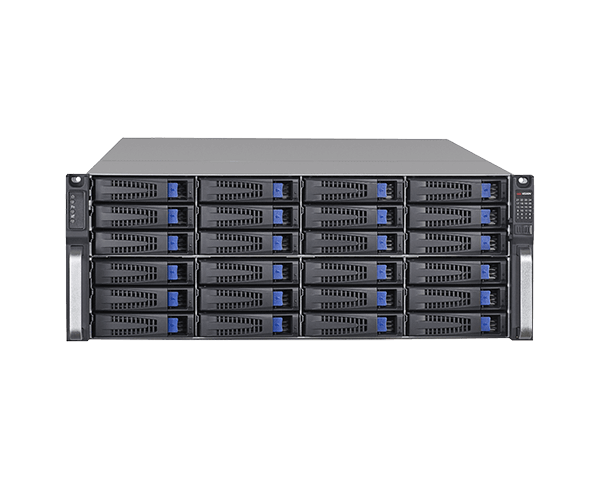

DS-A83024S-ICVS
24-slot High-performance Cluster Storage
- Streaming data management structure for high system performance
- Next generation hardware platform featuring high level new controller design (24 HDD slot, single controller with two 6-core processors, 64 GB cache)
- Storage virtualization / distribution / scale-out / load balance
- Able to tolerate up to 4 device failure without data loss
- User-friendly operation and maintenance
Specification
 |
|
| Maintenance and Management Management method | GUI based on web, serial port CLI, platform |
| Alarm method | Audio, indicator, GUI |
| Controller Processor | 2 Xeon 64-bit 6-core processors |
| Cache | 64 GB standard, extendable to 384 GB |
| Interfaces SAS extension interface | 3, 12 Gbps SAS 3.0 interface |
| Data network interface | 6, 1000M Ethernet interface (8 × GbE or 4 × 10GbE is extendable) |
| Management network interface | 1, 1000M Ethernet interface |
| COM interface | 2 (1 for RS-232, 1 for RS-485) |
| USB interface | 3 (2 × USB 3.0, 1 × USB 2.0) |
| Performance Standard cluster (2 Mbps) | 410-ch |
| Standard cluster (4 Mbps) | 200-ch |
| Micro cluster (2 Mbps) | 380-ch |
| Micro cluster (4 Mbps) | 180-ch |
| Video performance | 600 |
| Picture performance | 800 |
| Storage Management Cache protection | Supports customizing BBU in case of unexpected power failure to protect the cache data from being lost. |
| Disk management | Disk detection pre-alarm and repair |
| Network management Protocol | RTSP, ONVIF, PSIA etc |
| HDD Interface | SAS / SATA |
| Capacity | 1TB, 2TB, 3TB, 4TB, 6TB, 8TB, 10TB, 12TB, 14TB, 16TB |
| HDD slot | 24 |
| RAID | I RAID: N + M: K, N + M ≤ 16, M ≥ K, N∈[1, 15], M∈[1, 4], K∈[1, 4] |
| HDD Model | Hikvision,HK7216AH,16T; Hikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK726TAH,6T; Hikvision,HK724TAH,4T; Seagate,ST16000NM001G,16T; Seagate,ST14000NM001G,14T; Seagate,ST12000NM001G,12T; Seagate,ST10000NM001G,10T; Seagate,ST8000NM000A,8T; Seagate,ST6000NM021A,6T; Seagate,ST4000NM000A,4T; Seagate,ST4000NM002A,4T; Seagate,ST2000NM001A,2T; WD,HUS728T8TALE6L4,8T; WD,HUS726T6TALE6L4,6T; WD,HUS726T4TALA6L4,4T; |
| General Power supply | Redundant 1 + 1, ≤ 550 W |
| Working temperature | Working: +5 °C to +35 °C (+41 °F to +95 °F) |
| Working humidity | Storage: -20 °C to +70 °C (-4 °F to +158 °F) |
| Dimensions (W × D × H) | 486 x 173 x 760 mm (19.1 x 6.8 x 29.9 in) |
| Weight (without hard disk) | ≤ 43 kg (94.8 lb) |
| Power Consumption(with HDD) | ≤ 484 W/td> |
