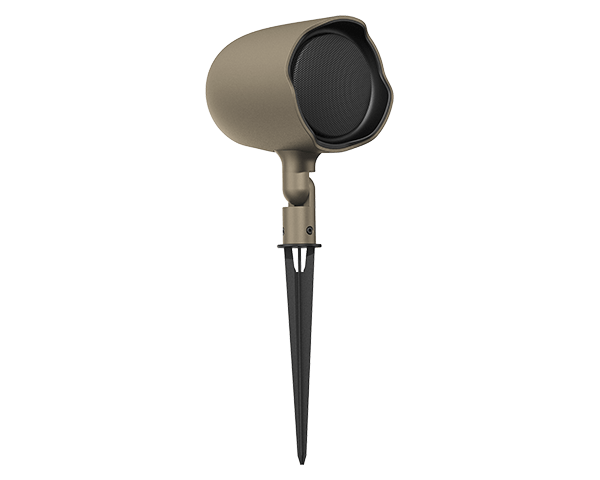

JBL GSF3
Landscape Loudspeaker
- Aimable via adjustable hinge
- Available in hunter green or tan finish
- Frequency range: 90 Hz – 20 kHz
- Includes ground stake and L-bracket for surface mounting
- Available in hunter green or tan finish
Specification
 |
|
| Quick Details Frequency Range (-10dB) | 90 Hz – 20 kHz |
| Frequency Response (+/-3 dB) | 130 Hz – 17 kHz |
| Power Rating | 60 W Continuous Program (2 hrs), 30 W (120 W Peak), Continuous Pink Noise (2 hrs), 20 W (80 W Peak), Continuous Pink Noise (100 hrs) |
| Sensitivity | 80 dB (120 Hz – 20 kHz) |
| Maximum SPL | 101 dB peak (95 dB continuous, 2 hr) @ 1m |
| Nominal Coverage | 80° conical |
| Nominal Impedance | 8Ω [ at 8Ω tap ] |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.75 W, 100V: 15 W, 7.5 W |
| Driver | 76 mm (3 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former 20 mm (0.8 in) titanium dome, Neodymium magnet assembly, Kapton™ voice coil former |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 2 wires with 18 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Hunter Green RAL 6018, or Tan RAL7004 |
| Dimensions | Cabinet 167mm height/diameter x 131mm deep (6.6 x 5.2 in) |
| Net Weight | 1.7 kg (3.8 lbs) |
