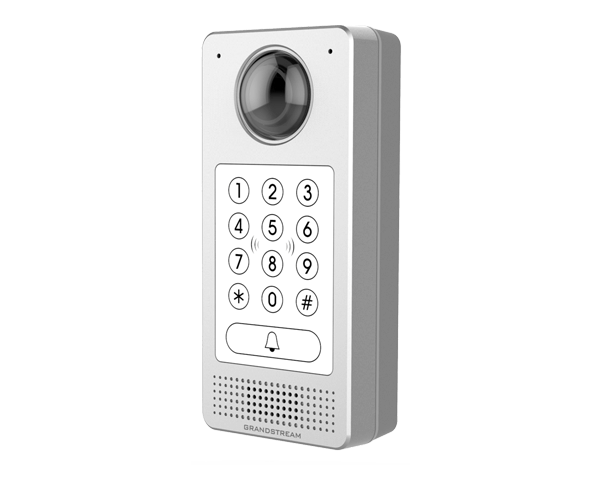

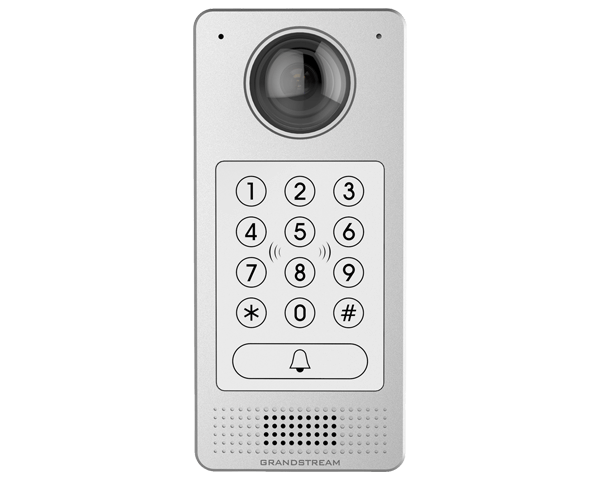

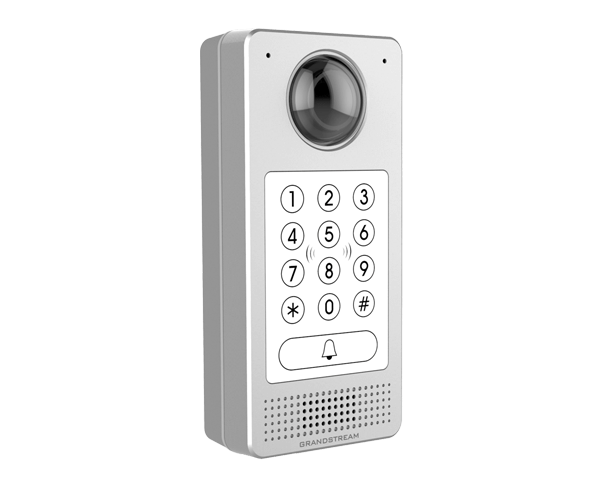

GDS3710 IP Video Door System
GDS3710 IP Video Door System
- Built-in RFID chip reader for keyless entry
- SIP video streaming to NVRs, video intercom stations, IP phones or smart phones simultaneously
- Powerful video resolutions up to 1080p
- Built with a metal casing to make it weatherproof and vandal resistant
- Integrated PoE to power the device and provide a network connection
- Built-in microphone and speaker offers voice options and intercom functionality
Specification
 |
|
| Max Video Resolution | 1920 x 1080 |
| Video Compression | H.264 High Profile / Main Profile / Base Profile, Motion JPEG |
| Image Sensor Resolution | 1/2.7", 2 Megapixel, 1920H x 1080V |
| Lens Type | 1/2", F2.5, FOV: 180°(W) x 150°(H) |
| Day & Night | White LEDs with smart brightness control |
| Max Frame Rate | 30 frames per second |
| Minimum Illumination | 0.5Lux |
| Wide Dynamic Range | Yes, up to 120db |
| Video Bit Rates | 128 Kbps to 4 Mbps, multi-rate for preview & recording |
| Embedded Analytics | Motion detection (up to 4 privacy masks) |
| Snapshots | Triggered upon events, sent via email or FTP |
| Multi-Stream Resolution | High-performance streaming server allowing multiple simultaneous access Primary video stream: 1920 x 1080 resolution for continuous full HD recording Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls Third video stream: 320 x 240 resolution for smartphone applications |
| Network Protocol | TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069 (pending), ARP / RARP, ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP |
| SIP/VoIP Support | Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms |
| Voice Codecs | G.711μ/a-law, G.722, DTMF (RFC2833, SIP INFO), AEC |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS) |
| Security | User and administrator level access control (pending), MD5 and MD5-sess based authentication, 256 bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q |
| Audio Input | Built-in microphone, up to 1.5m with AEC |
| Audio Output | Built-in HD loudspeaker (2 watts), sound quality suitable for up to 3 m |
| Network Interface | 10M / 100M auto-sensing |
