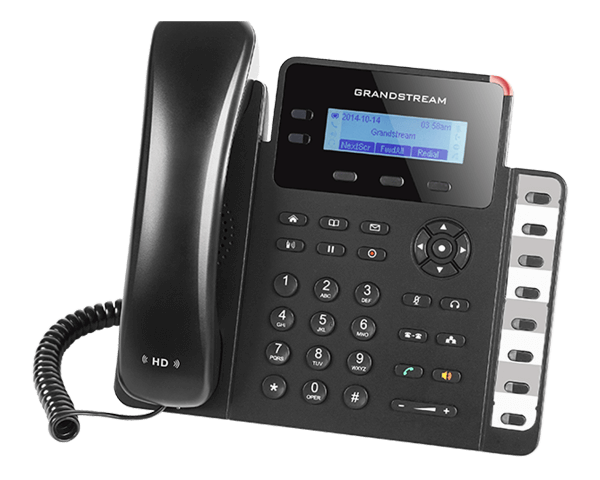

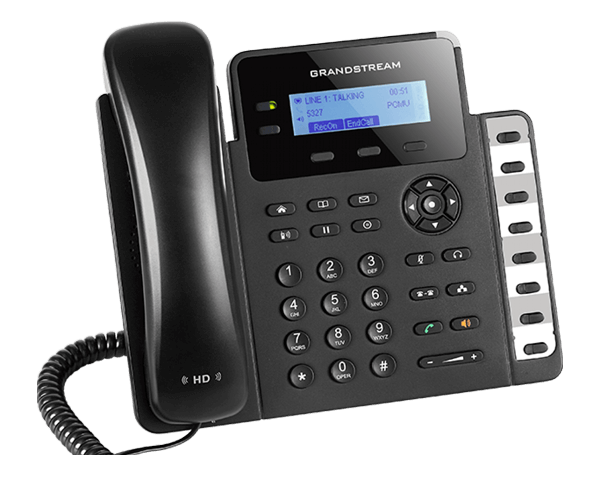

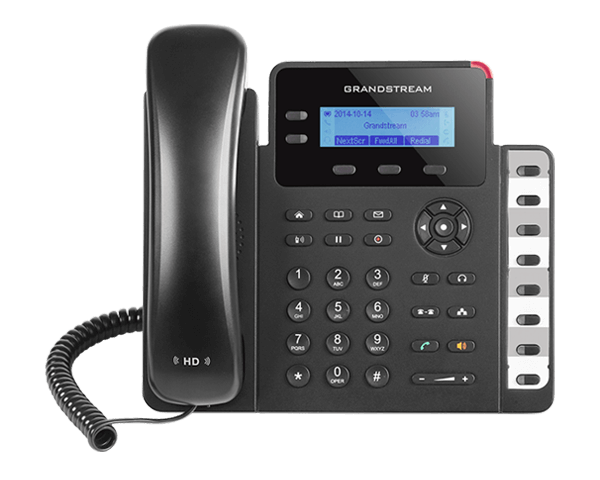

GXP1628 Gigabit Phone
GXP1628 Powerful Gigabit Phone
- HD audio on speakerphone and handset
- Dual switched Gigabit ports, integrated PoE
- 2 SIP accounts, 2 line keys, 3-way conferencing, 3 XML programmable context-sensitive soft keys
- 8 dual colored BLF / speed dial keys
- EHS support for Plantronics headsets
- Up to 1000 contacts, call history up to 200 records
Specification
 |
|
| Network Interfaces | Dual switched auto-sensing 10 / 100 / 1000 Mbps Ethernet ports, integrated PoE |
| Protocols / Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record,SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, CDP/SNMP/RTCP-XR |
| Graphic Display | 132 x 48 (2.95") backlit graphical LCD display |
| Feature Keys | 2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys, 8 BLF keys, 13 dedicated function keys for mute, headset, transfer, conference, send and redial, speakerphone, volume, phonebook, message, hold, page / intercom, record, home |
| Voice Codecs | Support for G.711μ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC |
| Telephony Features | Hold, transfer, forward (unconditional / no-answer / busy), call park / pickup, 3-way conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), downloadable phone book (XML, LDAP, up to 1000 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over |
| Headset Jack | RJ9 headset jack (allowing EHS with Plantronics headsets) |
| HD Audio | Yes, HD Handset and speakerphone with support for wideband audio |

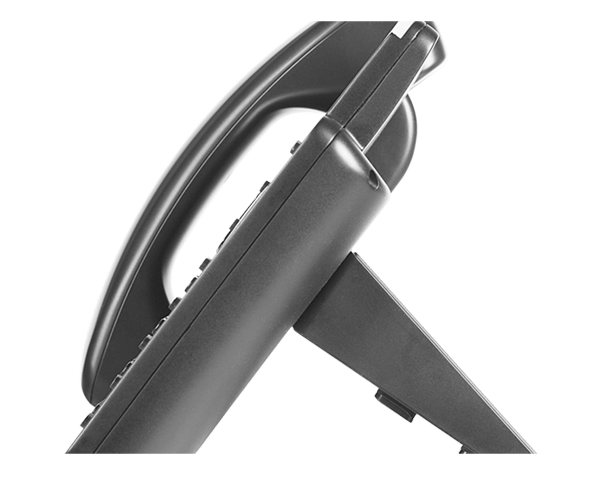

| Base Stand | Yes, 2 angled positions available, wall mountable |
| Wall Mountable | Yes |
| QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
| Upgrade / Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES, FTP / FTPS |
| Power & Green Energy Efficiency | Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA; PoE:IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) |
| Physical | Dimension: 220.5mm (L) x 192.5mm (W) x 76.0mm (H) (with handset) Unit weight:0.8kg; Package weight: 1.2kg |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing |
