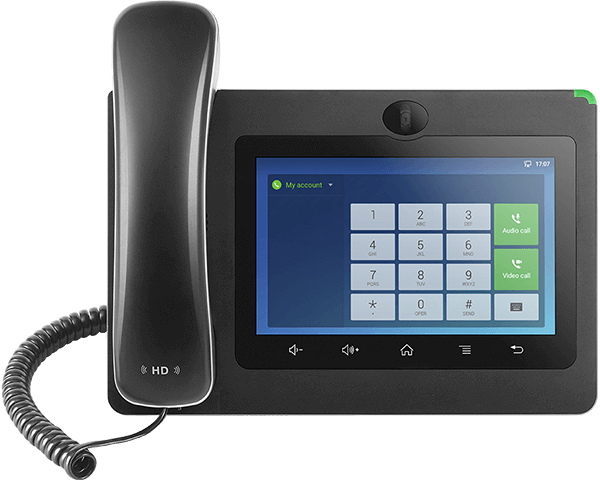

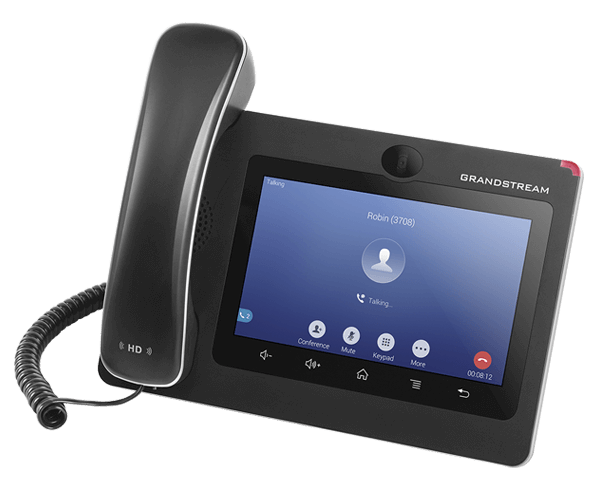

GXV3370 IP Video Phone
GXV3370 IP Video Phone for Android
- Runs on Android 7.0 operating system
- 7" (1024×600) capacitive 5-point touch screen TFT LCD
- Built-in camera for video calling with privacy shutter
- Integrated dual-band Wi-Fi (2.4GHz & 5GHz)
- 4-core 1.3GHz ARM Cortex A53 processor with 2GB RAM & 8GB eMMC Flash

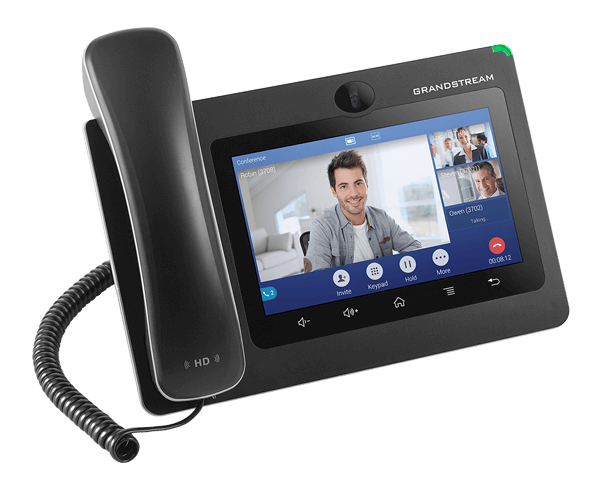

- 7-way audio conferencing & 3-way 720p 30fps HD video conferencing capability
Specification
 |
|
| Network Interfaces | Dual switched 10 / 100 / 1000 Mbps ports with integrated PoE / PoE+ |
| Protocols / Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVP |
| Graphic Display | 7" 1024×600 capacitive touch screen (5 points) TFT LCD |
| Camera | Tiltable mega-pixel CMOS camera with privacy shutter, 720p 30fps |
| Bluetooth | Yes, integrated Bluetooth 4.0 + EDR |
| WiFi | Yes, dual-band 802.11a/b/g/n (2.4GHz & 5GHz) |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD, HDMI-out (1.4 up to 720p 30fps) |
| Feature Keys | 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME, MENU and BACK |
| Voice Codecs and Capabilities | G.711μ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS |
| Video Codecs and Capabilities | H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p 30fps), anti-flickering, auto focus and auto exposure |
| Telephony Features | Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 7-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy & fail-over |
| Sample Applications | Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock, Recorder, GS Market, etc. Supports third-party Android apps such as Microsoft Teams API/SDK available for advanced custom application development |
| Applications Deployment | Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control |

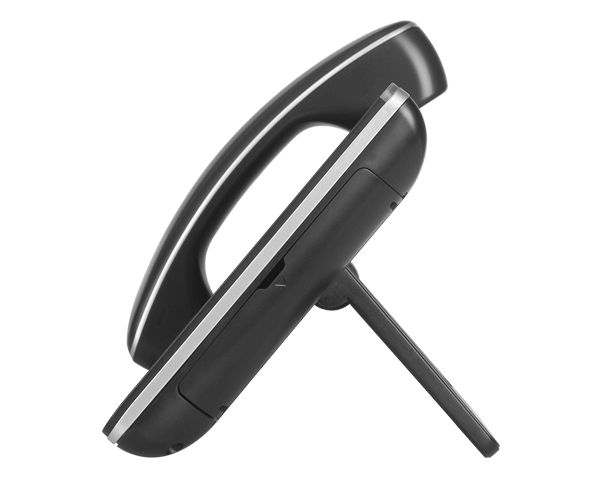

| Base Stand | Yes, built-in stand with multiple adjustable angles. Wall mountable. |
| HD Audio | Yes, HD handset and speakerphone with support for wideband audio |
| QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
| Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
| Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Polish, Hebrew, Dutch, Turkish, Swedish, Ukrainian, Arabic, Chinese, Korean, Japanese and more |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing |
| Package Content | GXV3370 phone, handset with cord, universal power supply, network cable, screen cleaning cloth, quick installation guide, GPL license, wall mount bracket |
