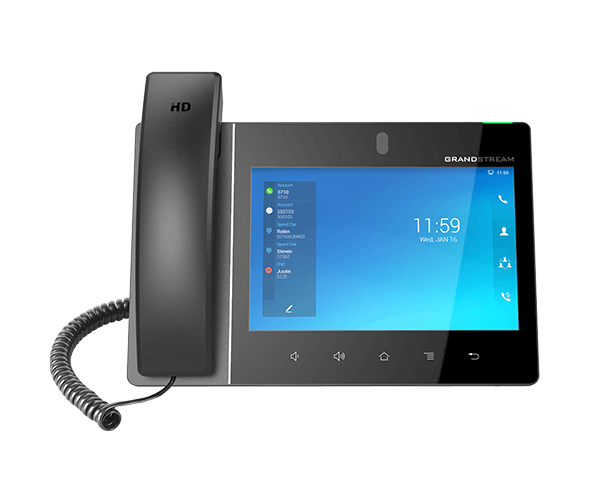

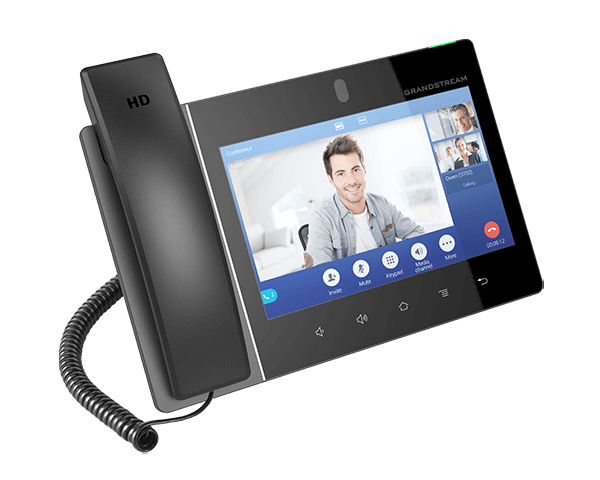

GXV3480 IP Video Phone
GXV3480 IP Video Phone for Android
- Built-in 2 megapixel camera for video calling with privacy shutter
- Built-in PoE / PoE+ for power and network connections
- Quad-core 2.0GHz ARMCortex-A55 processor with 4GB RAM and 16GB eMMC Flash
- 8" (1280x800) capacitive 10-point touch screen IPS LCD
- 12-way HD audio conferencing & 3-way 1080p 30fps HD video capability
- Runs on the Android 11 operating system
Specification
 |
|
| Network Interfaces | Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE / PoE+ |
| Protocols / Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN |
| Graphic Display | 8.0 inch 1280×800 capacitive touch screen (10 points) IPS LCD |
| Camera | Tiltable 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps |
| Bluetooth | Yes, integrated Bluetooth 5.0 |
| Wi-Fi | Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay |
| Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 port, Type-C, HDMI-out, HDMI-in |
| Feature Keys | 2 function touch keys VOLUME+/-, 3 dedicated Android touch keys HOME, MENU and BACK |
| Voice Codecs and Capabilities | Wide-band Opus, wide-band G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0) |
| Video Codecs and Capabilities | H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bit rate up to 4Mbps, 3-way video conference (1080p@30fps), BFCP, people video(up to 1080p@30fps) + content video(up to 1080p@15fps), anti-flickering and auto exposure |
| Telephony Features | Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 12-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, personalized music ringtones and music on hold, server redundancy & fail-over |
| HD Audio | Yes, 2 omni-directional microphones, HD handset and speakerphone with support for wideband audio |
| Security | User and administrator level passwords, random default admin password, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support, anti-hacking secure boot |
| Temperature and Humidity | Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing |
| Package Content | GXV3480 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth and quick installation guide |
