UCM6202 IP PBX Appliance
UCM6200 series IP PBX appliance
- Built-in call recordings server; recordings accessible via web user interface
- Supports up to a 5-level IVR (Interactive Voice Response)
- Auto Discovery and Zero Configuration of Grandstream SIP endpoints
- Gigabit network ports with Integrates PoE, USB, SD card
- Strongest possible security protection using SRTP, TLS and HTTPS encryption
Specification
 |
|

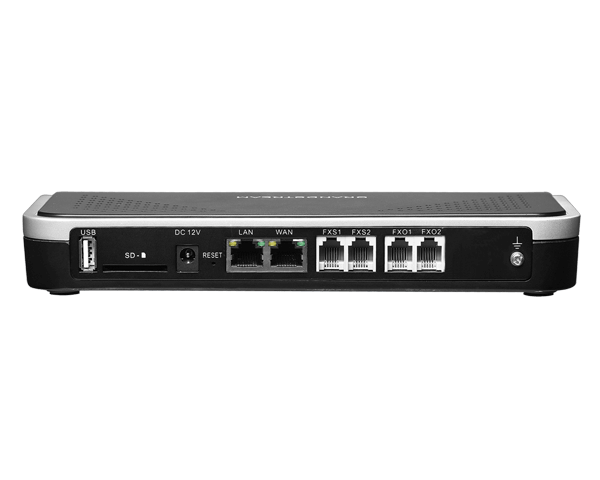

| Network Interfaces | Dual Gigabit RJ45 ports with integrated PoE Plus (IEEE 802.3at-2009) |
| PSTN Line FXO Ports | 2 ports (UCM6202); 4 ports (UCM6204); 8 ports (UCM6208) |
| NAT Router | Yes (supports router mode and switch mode) |
| Peripheral Ports | USB, SD |
| LED Indicators | Power / Ready, Network, PSTN Line, USB, SD |

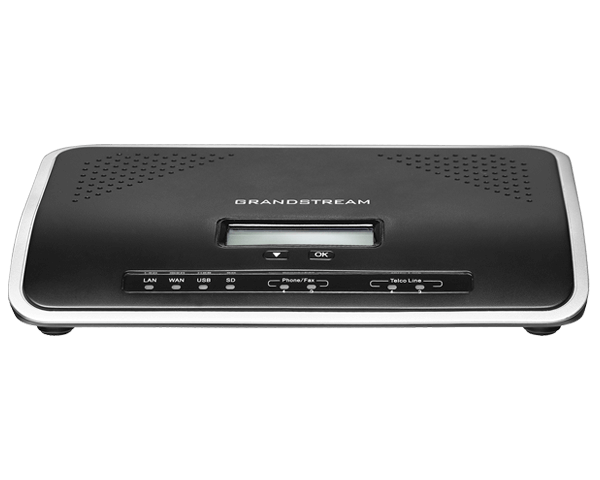

| LCD Display | 128x32 graphic LCD with DOWN & OK button |
| Reset Switch | Yes |
| Voice-over-Packet Capabilities | LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711 |
| Voice and Fax Codecs | G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM, AAL2-G.726-32, ADPCM; T.38 |
| Video Codecs | H.264, H.263, H263+ |
| QoS | Layer 3 QoS, Layer 2 QoS |
| Provisioning Protocol & Plug-and-Play | TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints via Zero Config (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk |
| Network Protocols | TCP/UDP/IP, RTP/RTCP, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS, LDAP |
| Media Encryption | SRTP, TLS, HTTPS, SSH |
| Dimensions | UCM6202/6204: 226mm L x 155mm W x 34.5mm H, UCM6208: 440mm L x 185mm W x 44mm H |
| Customizable Auto Attendant | Up to 5 layers of IVR (Interactive Voice Response) |
| Call Features | Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom etc. |
