GWN7600LR

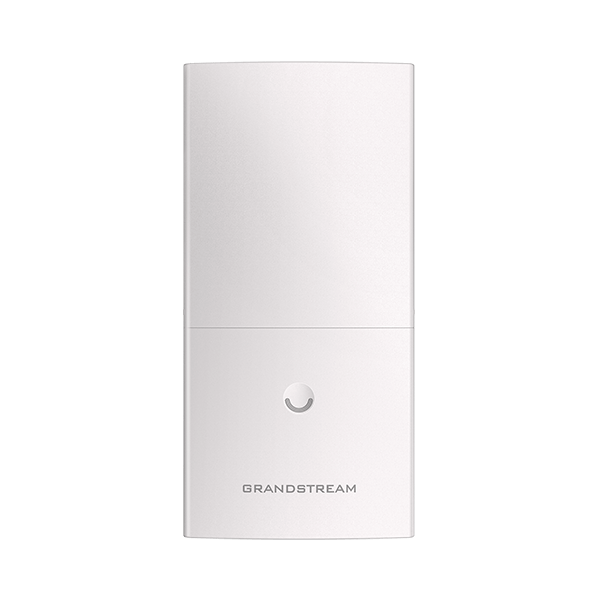

GWN7600LR Wi-Fi access point
- 1.27Gbps wireless throughput
- 2x Gigabit wireline ports
- Anti-hacking secure boot
- Support 450+ concurrent Wi-Fi client devices
- Up to 300-meter coverage range
Specification
 |
|
| Quick Details Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac (Wave-2) |
| Antennas | 2x2.4 GHz, gain 4 dBi, internal antenna, 2x5 GHz, gain 5 dBi, internal antenna |
| Wi-Fi Data Rates | I EEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps; 400 Mbps with 256-QAM on 2.4GHz IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4GHz radio : 2.400 - 2.4835 GHz, 5GHz radio: 5.150 - 5.250 GHz, 5.725 - 5.850 GHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz, 5G: 20,40 and 80 MHz |
| Wi-Fi and System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES), anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MIMO | 2x2:2 2.4GHz (MIMO), 2x2:2 5GHz (MU-MIMO) |
| Coverage Range | Up to 984 ft. (300 meters) |
| Maximum TX Power | 2.4G: 26dBm (FCC) / 16dBm (CE), 5G: 26dBm (FCC) /18dBm (CE) |
| Receiver Sensitivity | 2.4G 802.11b:-100dBm @1Mbps,-93dBm@11Mbps;802.11g:-95dBm @6Mbps,-76dBm@54Mbps; 802.11n 20MHz:-72dBm @MCS7;802.11n 40MHz:-70dBm @MCS7 5G 802.11a:-93dBm @6Mbps,-76dBm @54Mbps;802.11ac 20MHz:-68dBm @MCS8;802.11acHT40:- 65dBm @MCS9;802.11ac 80MHz:-60dBm @MCS |
| SSIDs | 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz) |
| Concurrent Client | 450+ |
| Network Interfaces | 2x autosensing 10/100/1000 Base-T Ethernet Port |
| Auxiliary Ports | 1x Reset Pinhole |
| Mounting | Outdoor base bracket and cover bracket included |
| LEDs | 1 tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 30 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN AP |
| Power and Green Energy Efficiency | Power over Ethernet 802.3af and 802.3at compliant Maximum Power Consumption: 12.9 W (PoE supply); 23.0 W (PoE+ supply |
| Environmental | Operation: -30°C to 60°C, Storage: -30°C to 70°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 290×150×35mm; Unit Weight: 708g, Unit + Mounting Kits Dimension : 290×150×56mm; Unit + Mounting Kits Weight: 1528.2g, Entire Package Dimension: 423×187×97mm; Entire Package Weight: 1844g |
| Package Content | Outdoor Long Range 802.11ac Wave-2 Wi-Fi AP, Mounting Kits, Quick Start Guid |
| Compliance | FCC, CE, RCM, IC |
