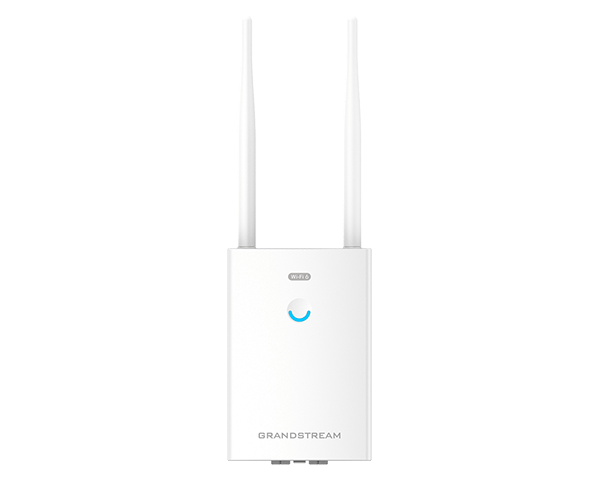

GWN7660LR
Long-range Wi-Fi 6 access point
- Self power adaptation upon auto detection of PoE or PoE+
- Support 256+ concurrent Wi-Fi client devices
- Up to 250-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data / control lockdown
Specification
 |
|
| Quick Details Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 2 dual band external antennas, 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dB |
| Wi-Fi Data Rates - 5G | IEEE 802.11ax: 7.3 Mbps to 1201 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wi-Fi Data Rates - 2.4G | IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5Mbps to 300Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Frequency Bands | 2.4GHz radio: 2412 - 2484 MHz 5GHz radio: 5180 - 5825 MHz |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20, 40 and 80 MHz |
| System Security | WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device |
| MU-MIMO | 2×2:2 2.4GHz, 2×2:2 5GHz |
| Coverage Range | Up to 250 meters |
| Maximum TX Power | 5G: 26dBm, 2.4G: 30dBm |
| Receiver Sensitivity | 2.4G 802.11b: -99dBm@1Mbps, -90dBm@11Mbps; 802.11g: -93dBm @6Mbps, -77dBm@54Mbps; 802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-72dBm @MCS7; 802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS1 5G 802.11a: -95dBm @6Mbps, -77dBm @54Mbps; 802.11ac 20MHz: -71dBm@MCS8; 802.11ac: HT40:- 67dBm @MCS9; 802.11ac 80MHz: -64dBm @ MCS9; 802.11ax 20MHz: -63dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -58dBm @MCS11 |
| SSIDs | 32 SSIDs total, 16 per radio (2.4GHz & 5GHz) |
| Concurrent Client | 256+ |
| Network Interfaces | 2 × autosensing 10/100/1000 Base-T Ethernet Ports |
| Auxiliary Ports | 1 × Reset Pinhole |
| Mounting | Outdoor wall or pole mount, kits included |
| LEDs | 1 × tri-color LEDs for device tracking and status indication |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| QoS | 802.11e/WMM, VLAN, TOS |
| Network Management | Embedded controller can manage up to 50 local GWN APs GWN.Cloud offers a free cloud management platform for unlimited GWN APs GWN Manager offers premise-based software controller for up to 3,000 GWN APs |
| Power and Green Energy Efficiency | PoE 802.3af/ 802.3at; Maximum Power Consumption: 12.9W |
| Environmental | Operation:-30°Cto 60°C, Storage: -30°C to 70°C, Humidity: 5% to 95% Non-condensing |
| Physical | Unit Dimension: 358.3mm(L)x115mm(W)x45.3mm(H); Unit Weight: 695g, Entire Package Dimension: 275x185.5x89mm; Entire Package Weight: 995g |
| Package Content | GWN7660LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide |
| Compliance | FCC, CE, RCM, IC |
