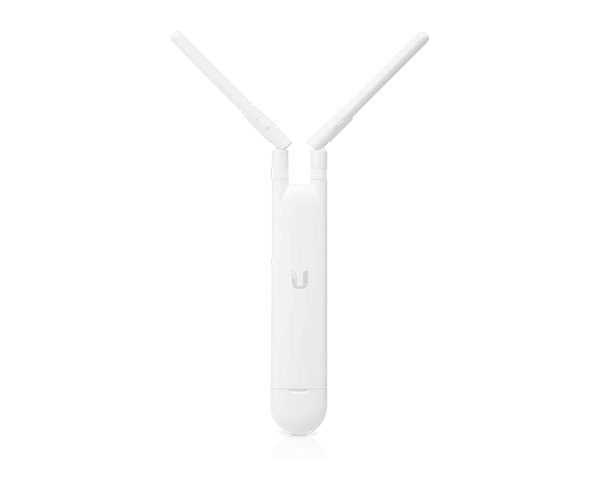

UAP-AC-M-US
Access Point AC Mesh
- Dual omnidirectional antennae with 2x2 MIMO functionality
- 5 GHz band with an 867 Mbps throughput rate
- 2.4 GHz band with a 300 Mbps throughput rate
- (2) RP-SMA connectors for customized pattern shaping
- Powered with PoE* or 24V passive PoE
- (1) GbE RJ45 port
Specification
 |
|
| Mechanical Dimensions | 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35") |
| Weight | With Antennas: 152 g (5.36 oz) |
| HardwareNetworking Interface | (1) 10/100/1000 Ethernet Port |
| Button | Reset |
| Antennas | (2) Dual-Band Antennas |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) PoE Alternative A (Pairs 1, 2+; 3, 6 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Supported Voltage Range | 44 to 57VDC |
| Maximum Power Consumption | 8.5W |
| Mounting | Wall/Pole/Fast-Mount (Kits Included) |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| SoftwareWiFi Standards | 802.11a/b/g/n/ac |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 100+ |
