DS-KD8003-IME1

ds-kd8003-ime1

KD8 Series Pro Modular Door Station

  1. Modular door station for villa
  2. DS-KD8003 with its flush mouting accessories
  3. 2 MP HD video intercom function
  4. IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
  5. Supports sub-modules access
  6. Easy to and extend
Specification

ds kd8003 ime1
System parameters Operating system Embedded Linux operation system
ROM 16 MB
RAM 256 MB
CPU Embedded MCU Processor
Video parameters Lens 1
Resolution Main stream : 1920 × 1080, Sub stream : 720 × 480
FOV Horizontal: 180° Vertical: 96°
WDR Support
Supplement light IR supplement
Video compression standard H.264
Audio parameters Audio compression standard G.711 U
Audio Input Built-in omnidirectional microphone
Audio output Built-in loudspeaker (More than 85 dB within 20 cm)
Audio compression bitrate 64 Kbps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Capacity Linked network camera 100
Network parameters Communication protocol TCP/IP, RSTP
Wired network 10/100 Mbps self-adaptive Ethernet
Device interfaces Alarm input 4
Network interface 1
TAMPER 1
Exit button 2
RS-485 1
Lock control 2
Door contact input 2
Power interface 1
Performances Multi-factor authentication 2000
General Button 1
Installation Flush mounting
Protective level IP65
Working temperature -40° C to +55° C(-40° F to 131° F)
Working humidity 10% to 95%
Dimensions Door station:98 mm × 99.8 mm × 43.9 mm (3.86" ×3.93\" × 1.73\") Cover:134 × 124 × 4 mm(5.28 × 4.88\" ×0.16\") Gang box:134 × 135 × 56 mm(5.28 × 5.31\" ×2.20\")"
Application environment Outdoor
Power consumption ≤ 10 W
Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
DS-KD8003-IME1 large

KD8 Series Pro Modular Door Station

  1. Modular door station for villa
  2. DS-KD8003 with its flush mouting accessories
  3. 2 MP HD video intercom function
  4. IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
  5. Supports sub-modules access
  6. Easy to and extend

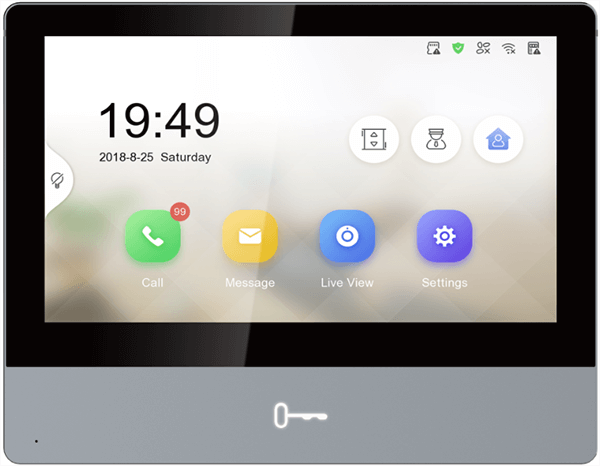

DS-KH8350-WTE1

KH8 Series Indoor Station

  1. IP indoor station
  2. Wi-Fi (for W version), standard PoE/ 12 VDC
  3. Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
  4. TF card, max 32G, for capture while video calling
  5. 8-ch alarm input , 2 alarm output, 1x485
  6. Remote unlocking via the client or the APP
  7. Views live videos of door stations and external cameras
