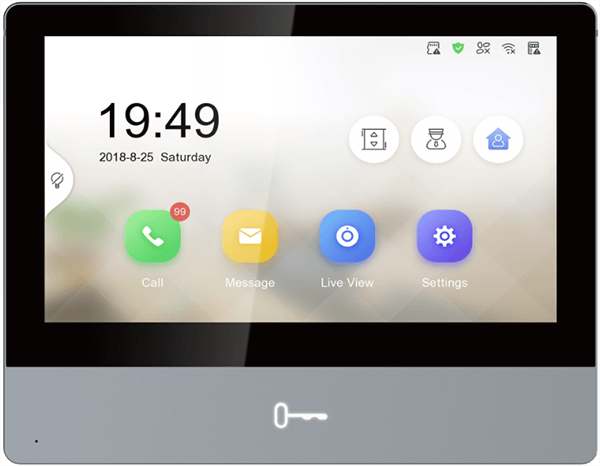

DS-KH8350-WTE1
KH8 Series Indoor Station
- IP indoor station
- Wi-Fi (for W version), standard PoE/ 12 VDC
- Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
- TF card, max 32G, for capture while video calling
- 8-ch alarm input , 2 alarm output, 1x485
- Remote unlocking via the client or the APP
- Views live videos of door stations and external cameras
Specification
|
|
| System parameters Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Display parameters Screen size | 7-inch |
| Operation method | Capacitive touch screen, physical button |
| Type | Colorful IPS LCD |
| Resolution | 1024 × 600 |
| Audio parameters Audio compression standard | G.711 U |
| Audio Input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity Event capacity | 200 |
| Notice capacity | 16 |
| Linked indoor extensions capacity | 5 |
| Linked doorphone capacity | 8 |
| Network parameters Communication protocol | TCP/IP, SIP, RTSP |
| Wired network | 10/100 Mbps self-adaptive |
| Wi-Fi standard | Wi-Fi 802.11 b/g/n |
| 3G/4G standard | Not supported. |
| Device interfaces Alarm input | 8-ch alarm inputs |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | Support |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Alarm output | 2 |
| Power interface | 1 |
| General Power supply | IEEE802.3af, standard PoE 12 VDC/1 A |
| Power consumption | ≤ 7 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Button | 1 |
| Installation | Surface mounting |
| Dimensions | 180 mm × 140 mm × 22.4 mm (7.09" × 5.51" × 0.88") |
| Application environment | Indoor |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek |

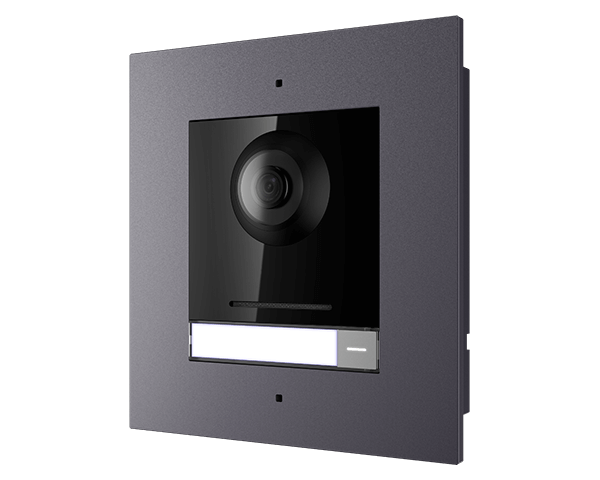

KD8 Series Pro Modular Door Station
